Design & specification
- Double wall insulated wall panels with Rockwool/EPS insulation for superior thermal performance. Steel skin panel with a wall thickness of 0.50mm ensuring durability and longevity.
- Air Handling Unit: Air Make up unit: 8HP; Exhaust Unit: 5HP, Units positioned on the side for efficient airflow management.
- Lighting: LED upper horizontal and side vertical lights included for optimal visibility. ETL listed LED lights guarantee safety and reliability.
- Ventilation: Side
- Entrance Flooring: Equipped with 2 small ramps.
- Doors: Front four folding doors with large glass view, side door also includes glass view.
- Finish: Powder coated inside and outside, with blue color outside and white color inside. (Different colors available upon request)
- Power: Operates on 3 Phase / 230V power supply.
- Energy Efficiency: Energy-saving design with quick heating capability.
- Control Panels: 1 control panel provided for easy operation of motors and lights.
- Compliance: Meets NFPA 33 & OSHA 1910 guidelines.
- Applications: Suitable for automotive, industrial, and furniture painting.
Optional
Electric infrared heat lamps, portable heating lamps, Drive-through doors feature, single-phase, In-Built Ramps and water-based paint drying system are available.
Dimensions:
Exterior: 23’-0” long × 17’-05” wide × 10’-0” high
Interior: 22’-6” long × 12’-6” wide × 8’-6” high
Warranty: Quality Assurance Guaranteed for 12 months!
Financing
Ready to turn your aspirations into reality? With our financing options, you can unlock your potential without emptying your pockets. Finance with us and watch your savings grow while you pursue your dreams. Let’s make it happen together!
We are here to help you every step of the way!

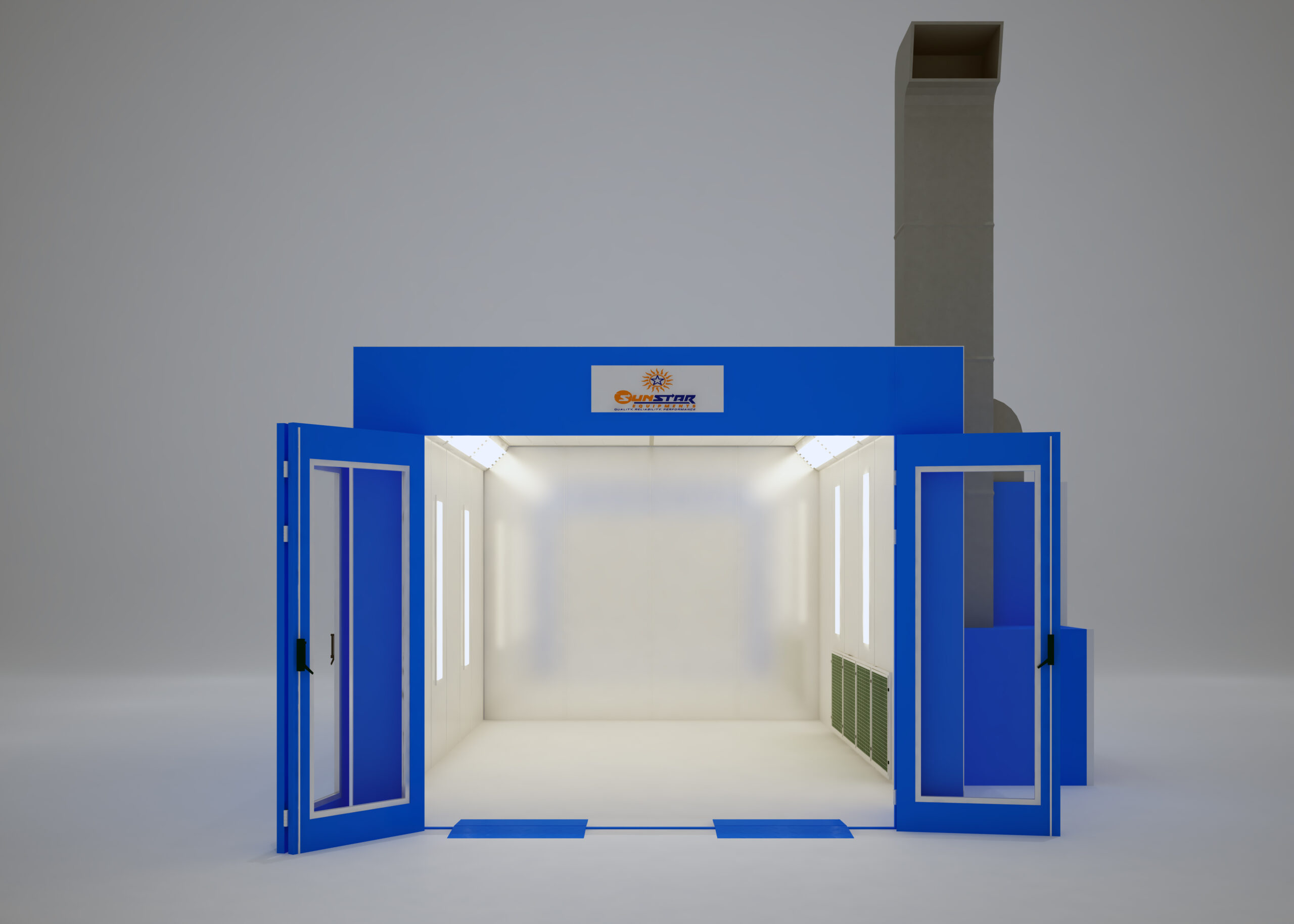

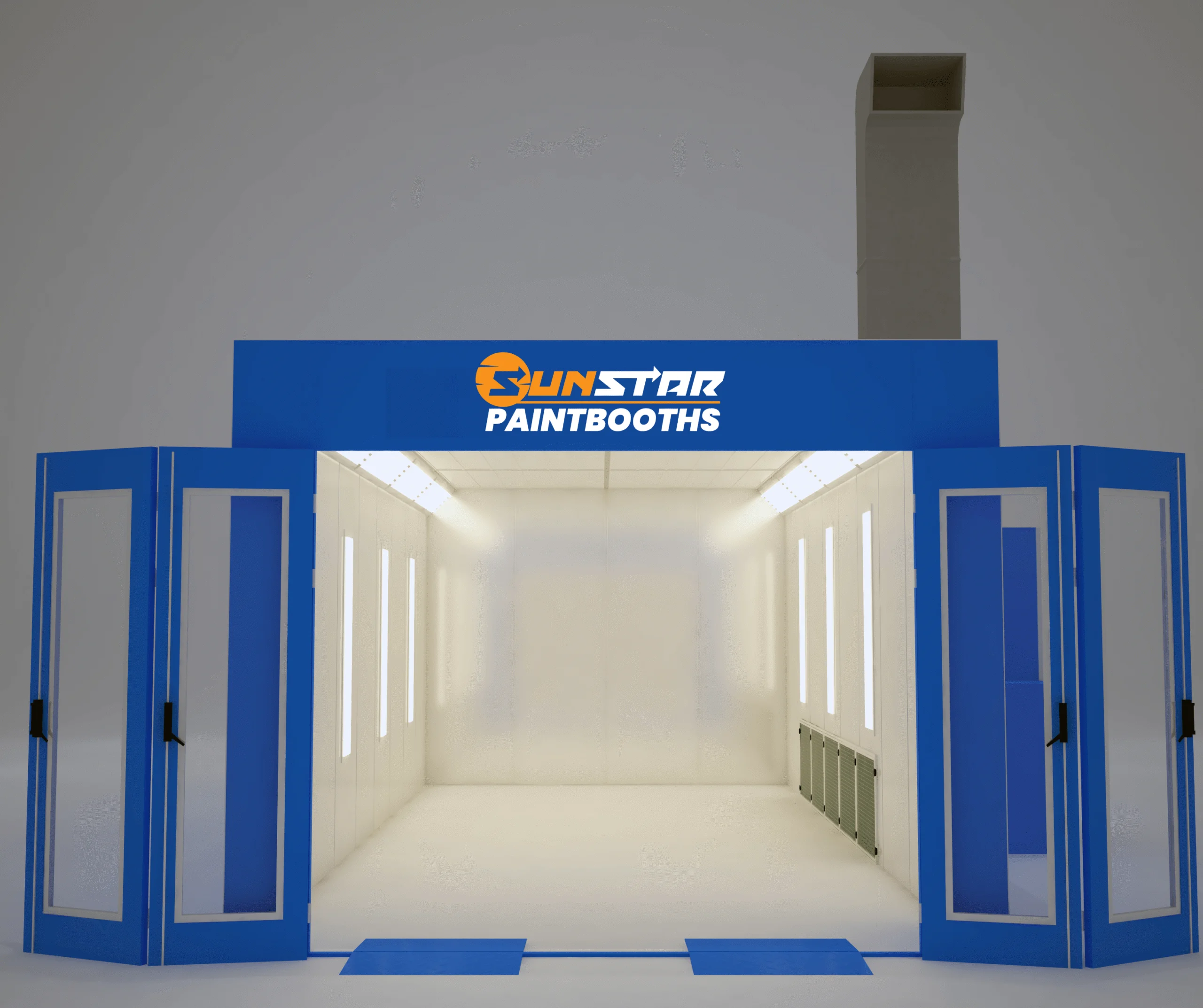

Gamma Two by Sunstar—a game-changer in paint booth technology. Say goodbye to concrete work and excavation headaches! Our Sunstar Gamma two paint booth, set in a side draft configuration, ingeniously delivers heated air from above, ensuring optimal painting conditions. With full heat recycling and no need for concrete pits, it’s innovation at its finest.
