Design & Specifications
- Double wall insulated wall panels with Rockwool/EPS insulation, steel skin panel with a thickness of 0.50mm.
- Air Make Up Unit: 8HP unit with 5HP exhaust unit positioned on the side.
- Basement and Floor: Galvanized steel assembly with grills and intended plates.
- Lighting: Includes ETL listed LED upper horizontal and side vertical lights.
- Ventilation: Features 3 rows of grills and 2 rows of intended blue plates for optimal airflow.
- Entrance Flooring: Equipped with 3 ramps above ground basement full ramps in blue color.

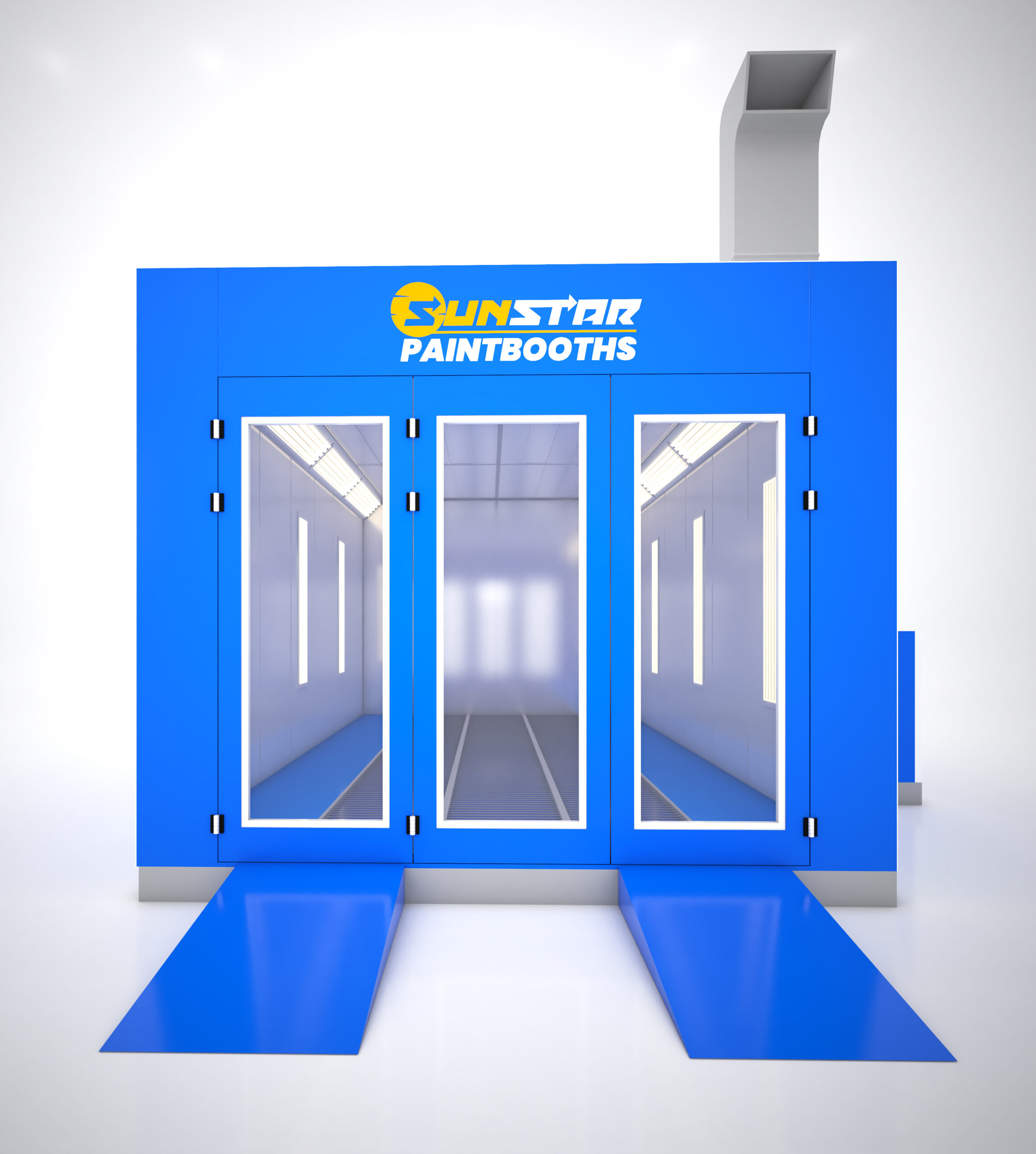

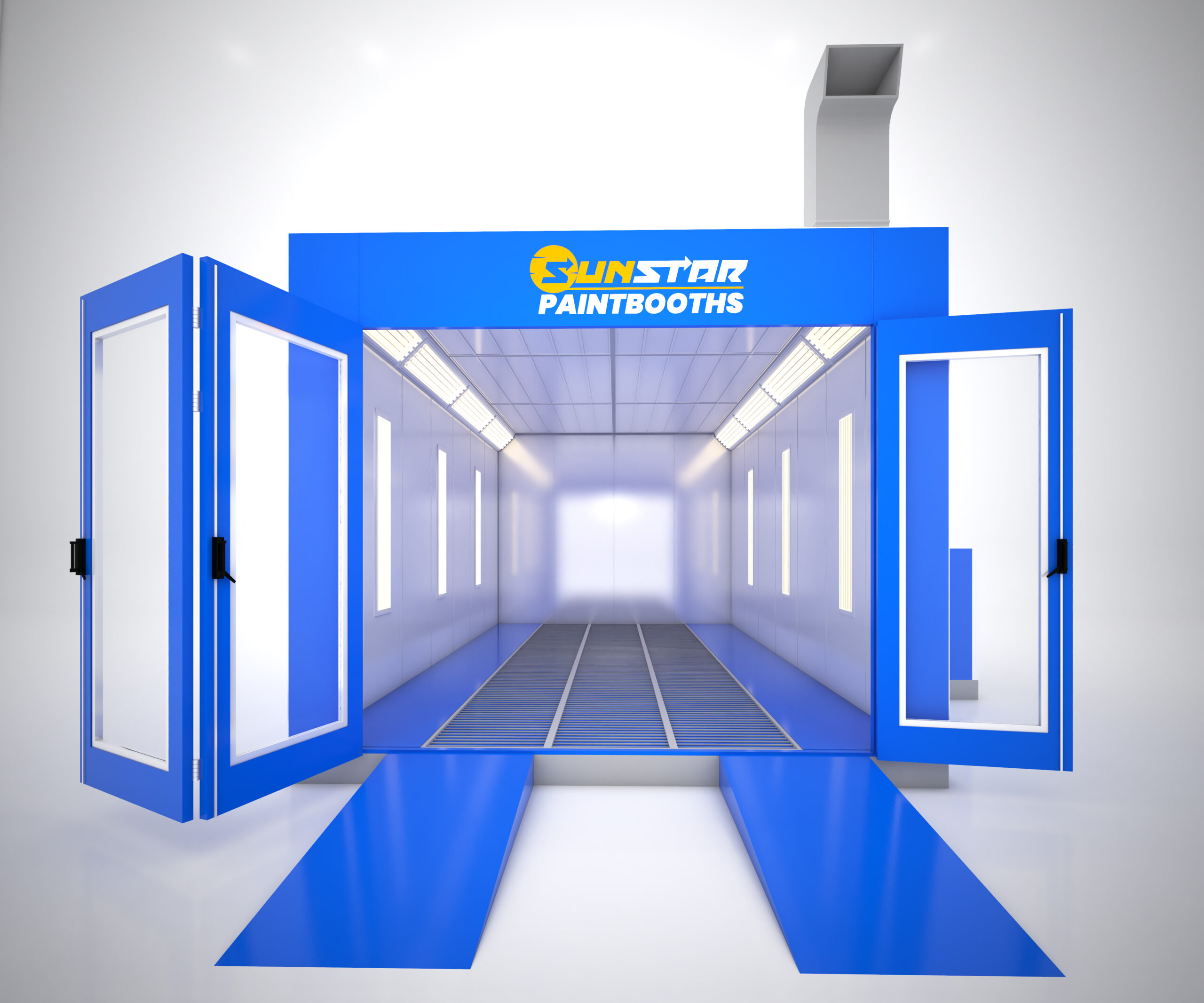

- Doors: Front three folding doors with large glass view, side door also includes glass view.
- Finish: Powder coated inside and outside, with blue color outside and white color inside.
- Power: Operates on 3 Phase / 230V power supply.
- Control Panels: Includes 1 control panel for motors and lights.
- Compliance: Meets NFPA 33 & OSHA 1910 guidelines.
- Applications: Suitable for automotive, industrial, and furniture painting.
- Energy Efficiency: Energy-saving design with quick heating capability.
Optional
Electric infrared heat lamps, portable heating lamps, Drive-through doors feature, single-phase, In-Built Ramps and water-based paint drying system are available.
Dimensions:
Exterior: 23’-0” long × 17’-0” wide × 10’-0” high
Interior: 22’-6” long × 12’-6” wide × 8’-6” high
Warranty: Quality Assurance Guaranteed for 12 months!
Financing
Ready to turn your aspirations into reality? With our financing options, you can unlock your potential without emptying your pockets. Finance with us and watch your savings grow while you pursue your dreams. Let’s make it happen together!
“Pit-less downdraft design, where both the paint booth and mechanical components are situated on an elevated steel basement with convenient drive-up ramps. This innovative setup offers the advantages of a downdraft airflow paint booth system without requiring costly concrete construction. Additionally, the fully grated floor ensures one of the cleanest finishing environments achievable.”
